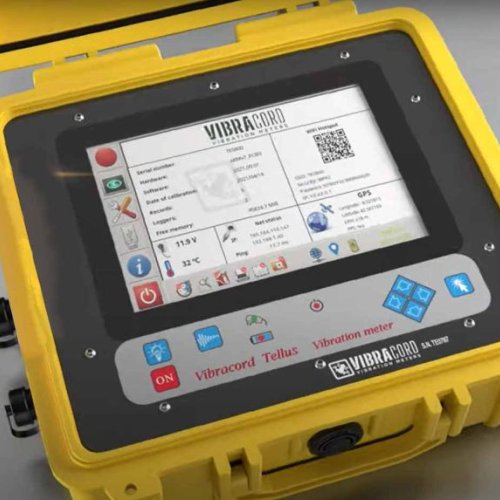

Vibracord Tellus – Blast and Ground Vibration Analyzer

The Vibracord Tellus Blast and Ground Vibration Analyzer is a high-performance instrument engineered for accurate measurement and recording of ground and structural vibrations generated by blasting, construction, piling, or demolition activities.

With advanced tri-axial sensing technology, smart analysis software, and a rugged design, the Tellus ensures compliance with international vibration standards, providing reliable data for environmental safety, structural protection, and regulatory reporting.

✅ Tri-Axial Geophone Sensor
Measures vibration in three perpendicular directions (X, Y, Z) to provide a complete picture of ground motion and structure response.

✅ High Sampling Accuracy
Captures even the smallest vibration events with high temporal resolution, ensuring precise PPV and frequency analysis.

✅ Automatic Trigger and Event Recording
Automatically detects vibration events and records waveform data with timestamp and event duration.

✅ Real-Time Display & Data Logging
Onboard display unit allows real-time monitoring and visualization of vibration levels during field operations.

✅ Smart Analysis Software
Comprehensive PC software for waveform review, frequency spectrum, and compliance analysis as per standards like DIN 4150, USBM RI 8507, and BS 7385.

✅ Data Storage & Easy Connectivity
Supports USB and SD card data transfer for convenient reporting, sharing, and project documentation.

✅ GPS & Time Synchronization (Optional)
Automatically logs geographical location and precise time for each recorded event — essential for professional blast documentation.

✅ Rugged & Weatherproof Design
IP67-rated aluminum enclosure ensures long-term durability in harsh mining, construction, and outdoor environments.

✅ Long-Lasting Battery Backup
Designed for extended monitoring sessions with efficient power management and rechargeable Li-ion battery.

• Open-pit and underground mining blast monitoring

• Civil construction and foundation piling

• Tunnel excavation and rock blasting

• Structural vibration studies near sensitive buildings

• Railway and road vibration analysis

• Environmental vibration compliance and reporting

• Measurement Range: up to 250 mm/s

• Frequency Range: 1 Hz – 1000 Hz

• Sensor Type: Tri-axial geophone (velocity mode)

• Sampling Rate: up to 10 kHz

• Memory Capacity: 1000+ events

• Data Output: PDF, Excel, CSV

• Connectivity: USB / SD card / optional wireless

• Protection Grade: IP67 (dust and waterproof)

• Battery Life: up to 48 hours continuous operation

• Ensure compliance with global vibration standards

• Protect nearby structures and equipment

• Reduce risks of damage claims and complaints

• Optimize blasting parameters for efficiency and safety

• Simplify vibration documentation and environmental reporting

At Mech Tech Global, we are committed to delivering Reliable, Robust, and Reasonable condition monitoring and vibration measurement solutions.
The Vibracord Tellus offers superior precision, rugged performance, and user-friendly operation — making it the perfect solution for mining, civil, and geotechnical applications where accuracy and dependability matter most.
