10 Piece (MOQ)
| Business Type | Exporter, Supplier, Trader, Importer |
| Material | Flexible PVC |
| Color | Blue |
| Application | BNC to Low-Noise Cable for Industrial Accelerometers |
| Click to view more | |
Product Details

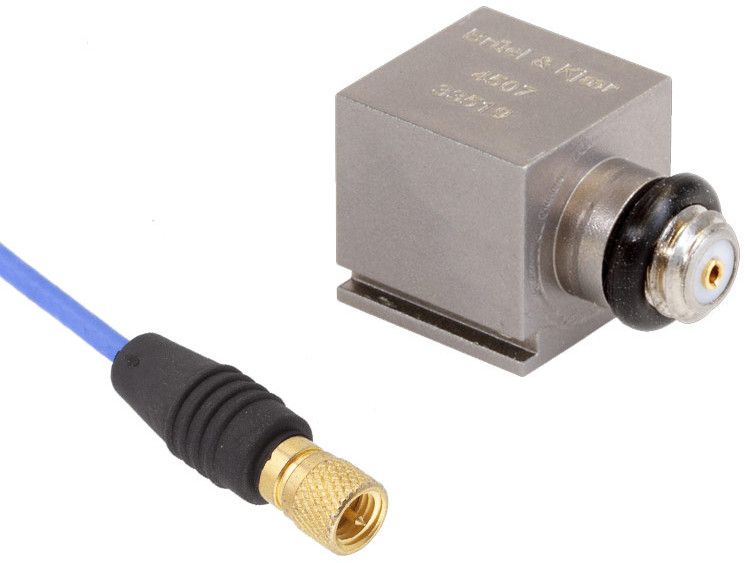

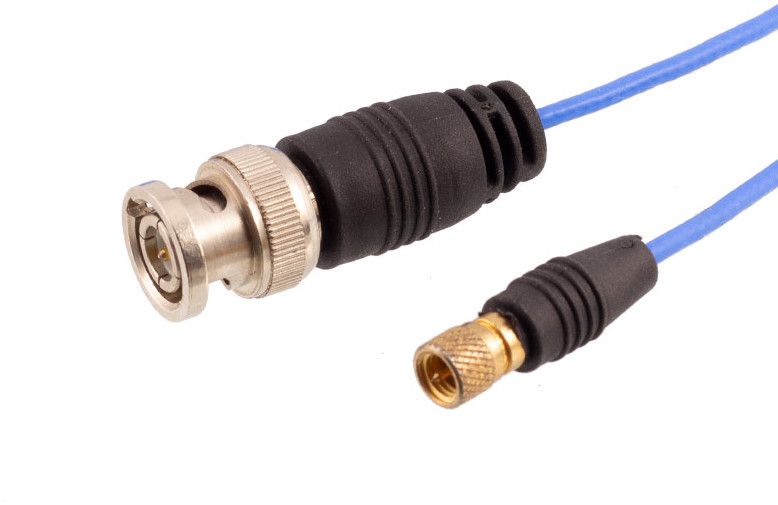

Mech Tech Global offers premium-grade BNC Low Noise Cables specially designed for IEPE / ICP Accelerometers, Piezoelectric Vibration Sensors, and Condition Monitoring Systems. Engineered with Teflon low-noise shielding, these cables ensure highly accurate vibration signal transmission even in harsh industrial environments.
This professional vibration sensor cable features a connector to BNC termination, making it compatible with major global accelerometer brands including PCB Piezotronics, CTC, Hansford Sensors, B&K Bruel & Kjaer, Dytran, and many more.
Key Features-
Low-Noise Teflon Shielded Cable delivers stable, interference-free signal transmission
-
BNC connector suitable for most standard accelerometers & vibration analyzers
-
High resistance to heat, moisture, chemical corrosion, and mechanical wear
-
IP67 waterproof design for rugged field applications
-
Custom cable lengths available – 1m, 3m, 5m, 10m or as per requirement
-
Compatible for single-axis vibration sensors, IEPE / ICP accelerometers & portable analyzers
-
Condition Monitoring & Predictive Maintenance (PdM)
-
Online Vibration Monitoring Systems
-
Route-Based Vibration Analysis
-
R&D Test Measurement
-
Rotating Machines – motors, pumps, fans, turbines, compressors, gearboxes, generators
| Connector Type | BNC |
| Pin Configuration | 2-pin |
| Cable Material | Teflon Low-Noise Cable |
| Temperature Range | -25°C to +80°C (High-temperature optional) |
| Rated Voltage | AC / DC 30V |
| Rated Current | 1A |
| Insulation Resistance | ≥ 100MΩ |
| Contact Resistance | ≤ 5MΩ |
| Waterproof Rating | IP67 |
| Coupling Method | Thread |
| Termination | Soldered |
| Mating Cycles | ≥ 500 cycles |
| Standards | IEC / IPC-A-620 |
| Outer Jacket Material | Black TPV |
Note: Cable length can be customized in meters based on customer requirements.
Why Choose Mech Tech Global?
-
Reliable and cost-effective industrial connectivity solutions
-
Bulk supply options & OEM customization available
-
Fast delivery & excellent after-sales support
-
Trusted by maintenance, MRO, and predictive maintenance professionals worldwide
