Laser Alignment Systems

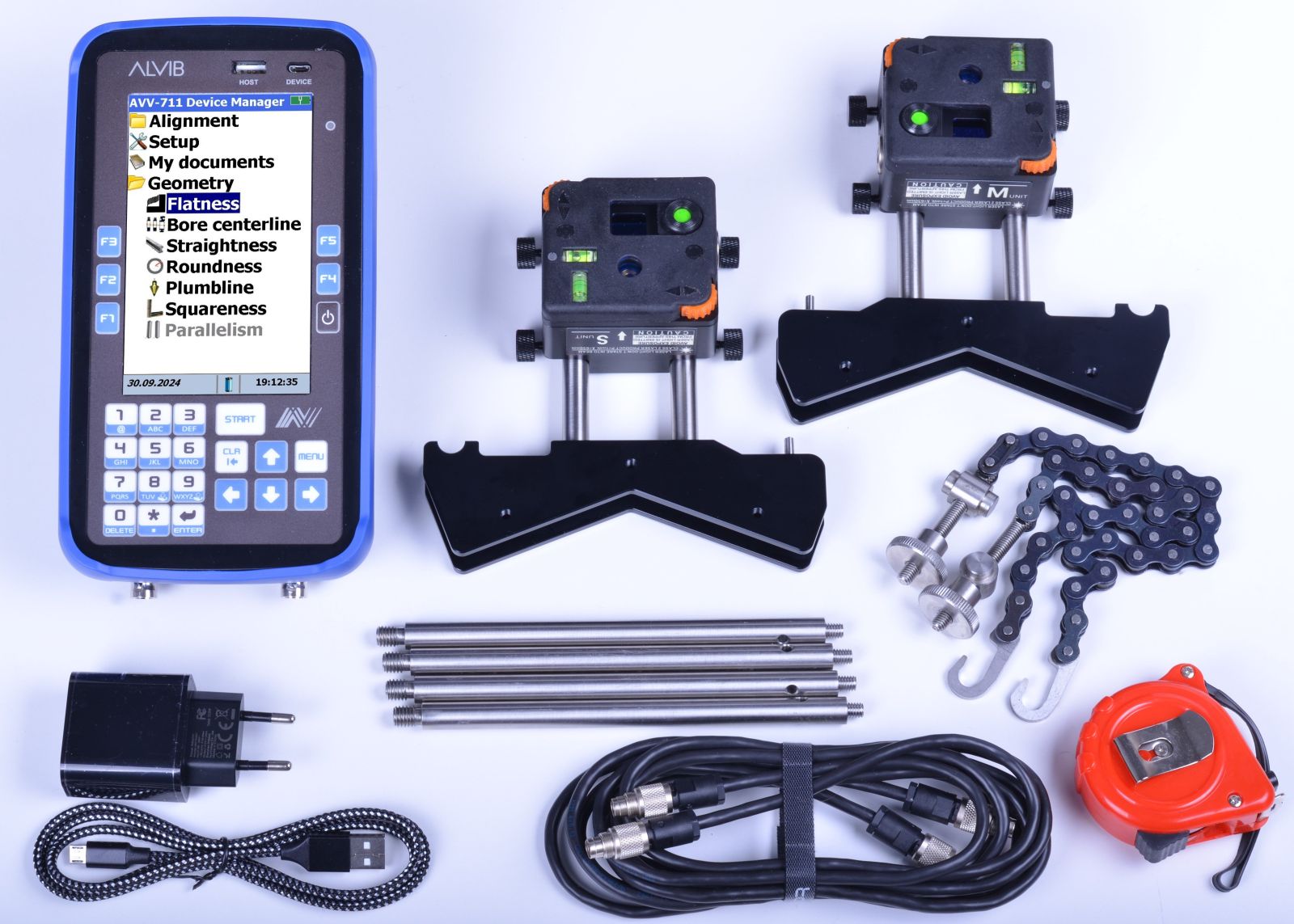

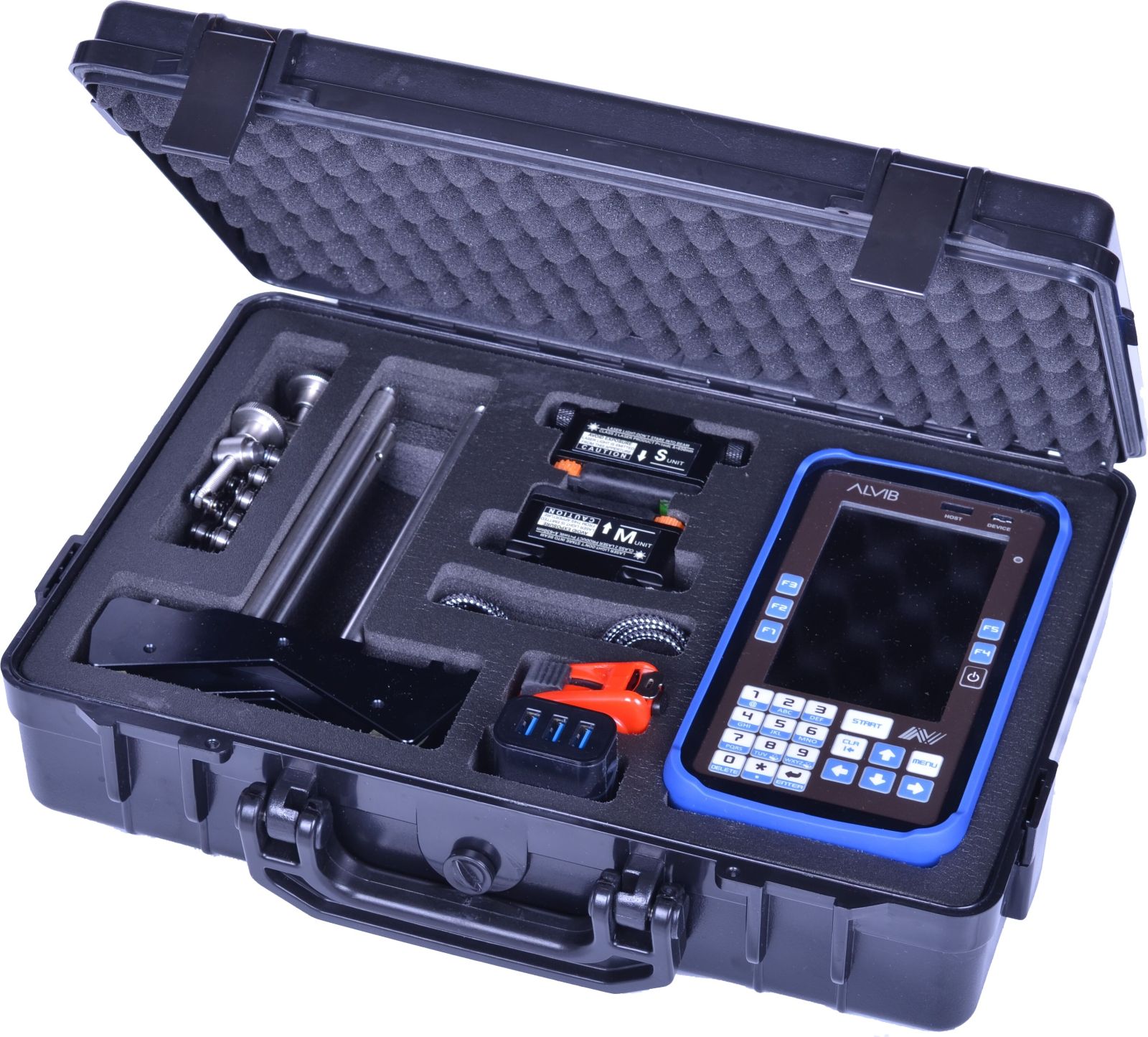

AVV-711 Laser Shaft Alignment System Precision Alignment for Maximum Machine Efficiency

The AVV-711 Laser Shaft Alignment System is a high-precision, user-friendly tool designed to ensure accurate alignment of rotating machinery. Developed for professional maintenance and reliability teams, this system minimizes downtime, reduces energy loss, and extends equipment life — making it an essential instrument for predictive maintenance and condition monitoring applications.

Key Features:

✅ High Accuracy Laser Measurement
Delivers precise alignment results within microns using advanced dual-laser and digital detector technology.

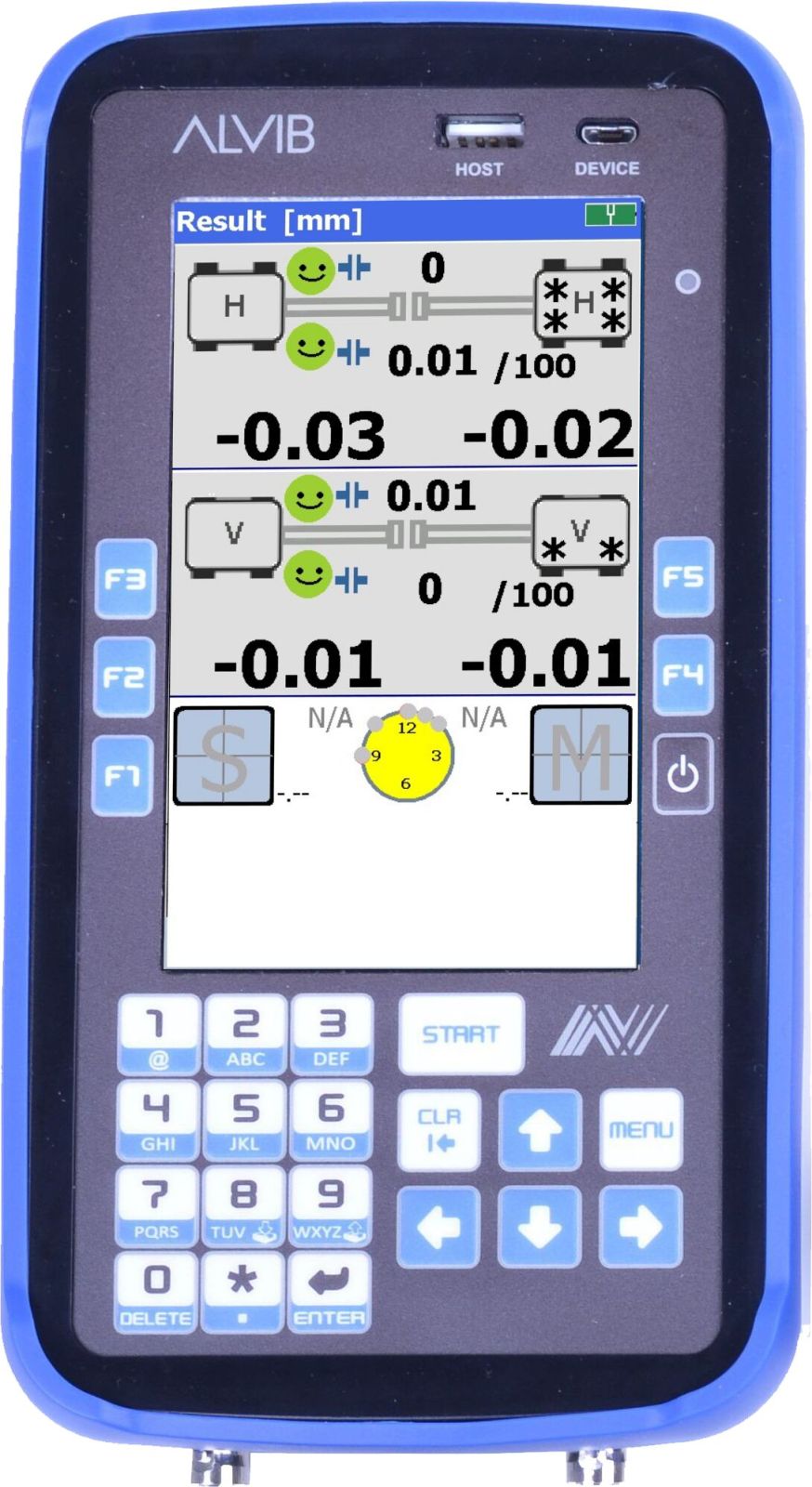

✅ Intuitive Touchscreen Interface
Equipped with a large, color display and easy-to-use graphical interface for fast setup and real-time alignment guidance.

✅ Automatic Measurement Mode
Performs measurements automatically with minimal user input, saving time and improving repeatability.

✅ Soft Foot Detection
Built-in soft foot measurement ensures accurate machine setup before alignment correction.

✅ Live Move Function
Displays continuous live values during machine adjustment, helping achieve perfect alignment in real time.

✅ Thermal Growth Compensation
Allows input of thermal expansion values to ensure alignment accuracy during actual operating conditions.

✅ Comprehensive Data Reporting
Generates professional PDF or Excel alignment reports directly from the device or via PC software.

✅ Wireless Connectivity
Bluetooth or Wi-Fi communication between sensors and display unit for flexible, cable-free operation.

✅ Rugged & Portable Design
Industrial-grade aluminum housings with IP65 protection, designed to withstand harsh environments.

✅ Long Battery Life
Extended operation time suitable for full-day field use without frequent recharging.

Applications:

• Pumps, motors, fans, compressors

• Gearboxes and turbines

• Generators, blowers, and conveyors

• All types of rotating machinery in industrial plants

Benefits:

• Reduce energy consumption and bearing wear

• Minimize vibration and mechanical stress

• Increase machine uptime and reliability

• Save maintenance costs and improve productivity

Technical Highlights:

• Measurement Accuracy: ±0.01 mm / ±0.05°

• Operating Range: up to 10 meters

• Communication: Bluetooth / USB / Wi-Fi

• Data Output: PDF / Excel / Cloud Sync

• Power Supply: Rechargeable Li-ion battery

Why Choose AVV-711 from Mech Tech Global?

At Mech Tech Global, we provide reliable, robust, and reasonable laser alignment solutions trusted across industries. The AVV-711 system combines advanced technology with simplicity to ensure your rotating machinery runs at peak performance.

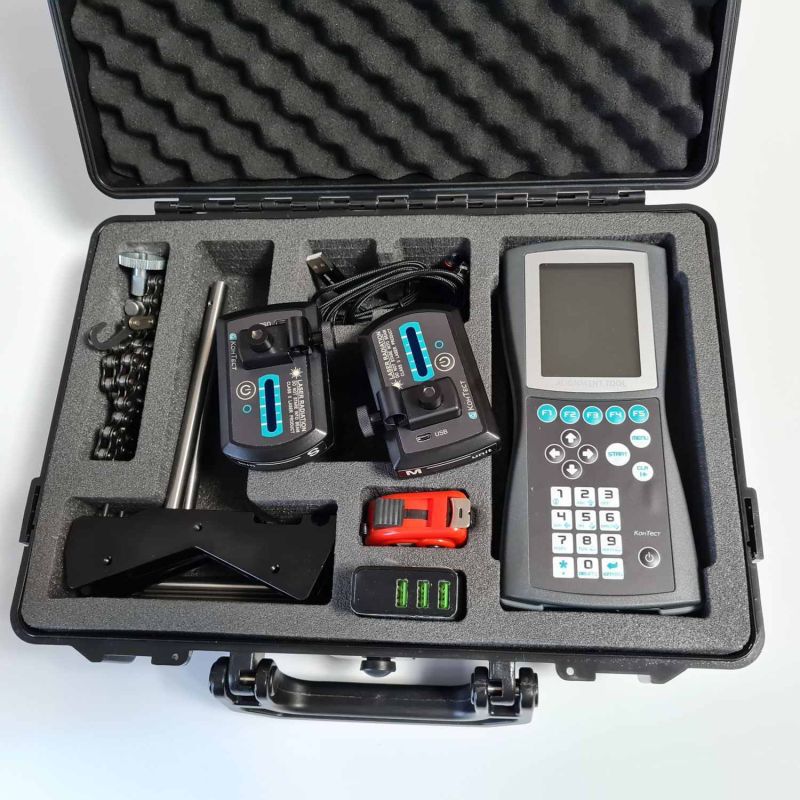

QB701 Laser Shaft Alignment System Accurate | Intelligent | Reliable

The QB701 Laser Shaft Alignment System is a next-generation alignment instrument designed for precision and simplicity in rotating machinery alignment. Built with advanced laser technology, the QB701 ensures accurate and repeatable shaft alignment for motors, pumps, fans, compressors, and other coupled machines.

Developed for maintenance professionals and reliability engineers, this system enhances machine performance, reduces energy losses, and extends equipment life — a perfect tool for condition monitoring and predictive maintenance programs.

Key Features:

✅ High-Precision Dual-Laser Technology
Ensures fast and highly accurate alignment measurements with repeatability within microns.

✅ Smart Touchscreen Display
User-friendly color touchscreen interface provides real-time graphical alignment guidance for quick setup and correction.

✅ Automatic Measurement & Evaluation
Performs automatic readings and calculates alignment conditions (offset, angularity, soft foot) instantly.

✅ Soft Foot Detection
Detects soft foot before alignment to prevent machine frame distortion and improve installation accuracy.

✅ Live Move Function
Displays real-time horizontal and vertical correction values during machine movement to achieve perfect alignment.

✅ Thermal Growth Compensation
Compensates for thermal expansion, ensuring accurate alignment under actual operating temperatures.

✅ Comprehensive Reporting
Generates detailed alignment reports (PDF or Excel) that can be saved, shared, or printed for documentation and audits.

✅ Wireless Communication
Bluetooth-enabled sensors and display unit allow cable-free, convenient operation in tight spaces.

✅ Durable Industrial Design
Rugged IP65-rated aluminum housings make the QB701 suitable for harsh industrial environments.

✅ Long Battery Backup
Power-efficient design allows long hours of continuous operation for field and plant maintenance tasks.

Applications:

• Motor–pump alignment

• Gearbox, blower, and compressor alignment

• Generator and turbine shaft alignment

• Conveyor and coupling systems in industrial plants

Technical Highlights:

• Accuracy: ±0.01 mm / ±0.05°

• Measurement Range: up to 10 m

• Display Unit: 3.5 inches and 5 inches

• Data Transfer: Bluetooth / USB / Wi-Fi

• Report Format: PDF, Excel

• Battery Life: Up to 12 hours continuous use

• Protection Grade: IP65 (dust & water resistant)

Benefits:

• Reduce mechanical vibration and bearing failure

• Increase equipment uptime and performance

• Minimize power losses and machine wear

• Improve overall plant reliability and efficiency

Why Choose Mech Tech Global’s QB701?

At Mech Tech Global, we deliver Reliable, Robust & Reasonable condition monitoring and laser alignment solutions.
The QB701 Laser Shaft Alignment System combines high-end technology, durability, and simplicity — ensuring your machinery operates with maximum efficiency and minimum maintenance.
